Triple-axis analog accelerometer with ±3g range, offering a 550Hz bandwidth and 1.6kHz -3db bandwidth. Features a sensitivity of 300mV/g, operating from 1.8V to 3.6V with a nominal supply current of 350µA. Housed in a 16-pin LFCSP EP package with matte tin contact plating, this component operates between -40°C and 85°C.
PackageLFCSP EP
Current350uA
Quick Jump:
Technical Specifications
Analog Devices ADXL335BCPZ technical specifications.
General
| -3db Bandwidth | 1.6kHz |
| Axis | X, Y, Z |
| Bandwidth | 550Hz |
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Depth | 4mm |
| Height | 1.43mm |
| Lead Free | Contains Lead |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Nominal Supply Current | 350uA |
| Operating Supply Current | 350uA |
| Output | ANALOG |
| Output Type | Analog |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | 300mV/g |
| Supply Current | 350uA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADXL335BCPZ Datasheet
Download the complete datasheet for Analog Devices ADXL335BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

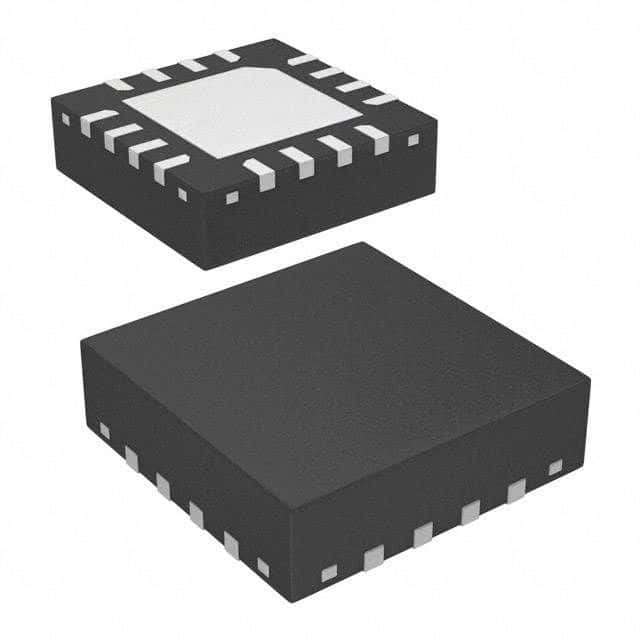

Product Images
