3-axis digital accelerometer with selectable full-scale ranges of ±2 g, ±4 g, ±8 g, and ±16 g. Features a 320Hz -3dB bandwidth and a 0.05Hz bandwidth. Operates from a 2V to 3.6V supply with a typical supply current of 140µA. Sensitivity is 256 LSB/g. Packaged in an LGA with tin, matte contact plating, supplied on tape and reel.
PackageLGA
Current140uA
Quick Jump:
Technical Specifications
Analog Devices ADXL343BCCZ-RL technical specifications.
General
| -3db Bandwidth | 320Hz |
| Axis | X, Y, Z |
| Bandwidth | 0.05Hz |
| Package/Case | LGA |
| Contact Plating | Tin, Matte |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Output Type | Digital |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Sensitivity | 256LSB/g |
| Supply Current | 140uA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADXL343BCCZ-RL Datasheet
Download the complete datasheet for Analog Devices ADXL343BCCZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

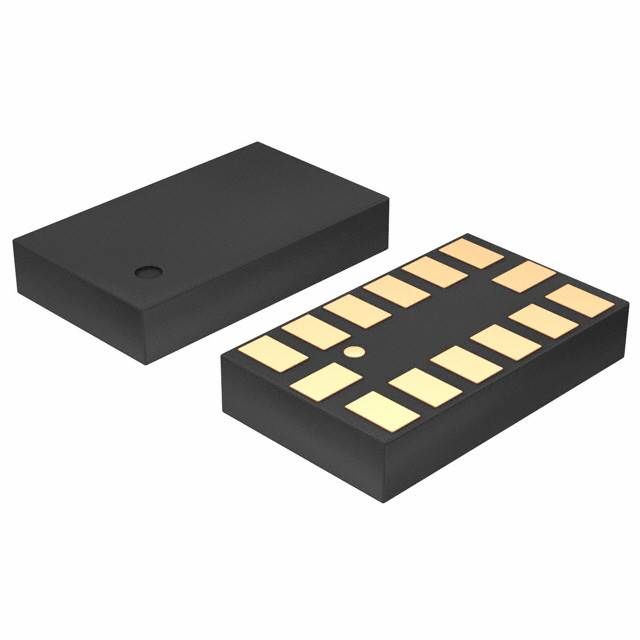

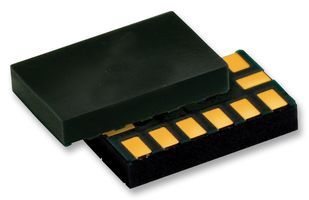

Product Images
