Digital 3-axis accelerometer with selectable full-scale ranges of ±2 g, ±4 g, ±8 g, and ±16 g. Features include a 320Hz -3dB bandwidth, 0.05Hz bandwidth, and 256 LSB/g sensitivity. Operates with I2C and SPI interfaces, from 2V to 3.6V supply voltage, and consumes 140µA supply current. Packaged in an LGA with tin, matte contact plating, this RoHS compliant component is supplied on tape and reel.
PackageLGA
Current140uA
Quick Jump:
Technical Specifications
Analog Devices ADXL343BCCZ-RL7 technical specifications.
General
| -3db Bandwidth | 320Hz |
| Axis | X, Y, Z |
| Bandwidth | 0.05Hz |
| Package/Case | LGA |
| Contact Plating | Tin, Matte |
| Interface | I2C, SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Output Type | Digital |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Sensitivity | 256LSB/g |
| Supply Current | 140uA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADXL343BCCZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADXL343BCCZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

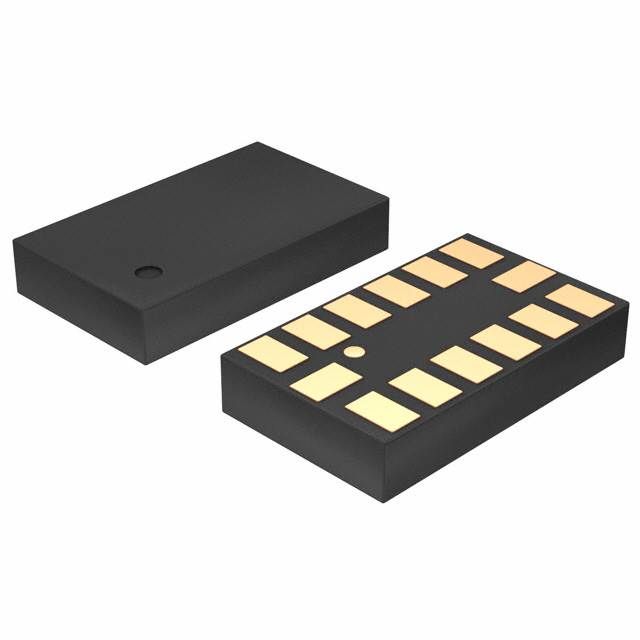

Product Images
