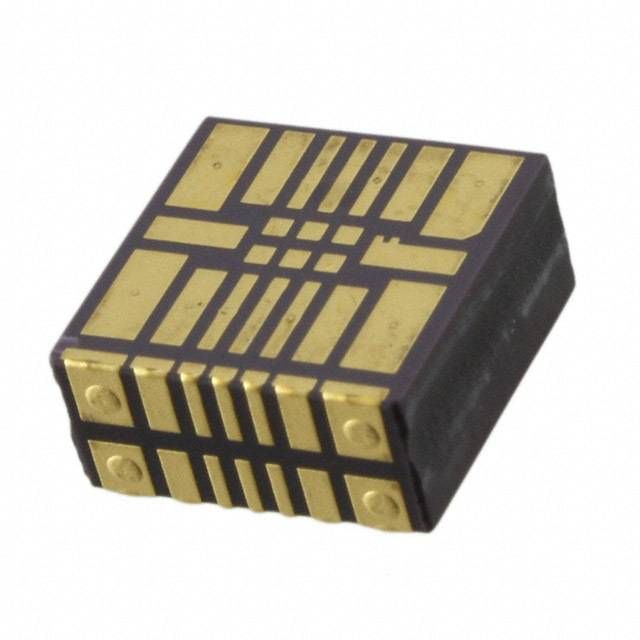

The ADXRS450BEYZ is a 3-axis gyroscope from Analog Devices with a bandwidth of 80Hz. It operates within a temperature range of -40°C to 105°C and has a supply voltage range of 3.15V to 5.25V. The device is mounted via surface mount and is available in a 32-pack LCC package. It is RoHS compliant and has a resolution of 16 bits.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADXRS450BEYZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADXRS450BEYZ technical specifications.
| -3db Bandwidth | 80Hz |
| Axis | X, Y, Z |
| Bandwidth | 80Hz |
| Package/Case | LCC |
| Height | 4.4mm |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 9.2mm |
| Linearity | 99.75% |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Operating Supply Current | 6mA |
| Output Type | SPI |
| Package Quantity | 32 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Width | 9.2mm |
| RoHS | Compliant |
