Analog Devices
AMP01GS-REEL
IC INSTRUMENTATION AMPLIFIER, 150 uV OFFSET-MAX, 0.57 MHz BAND WIDTH, PDSO20, SOIC-20, Instrumentation Amplifier
PackageSOIC W
Resistance20GR
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AMP01GS-REEL technical specifications.
General
Package/Case
SOIC W
Common Mode Rejection Ratio
75dB
Input Bias Current
6mA
Input Offset Voltage (Vos)
100uV
Input Resistance
20GR
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Packaging
Tape and Reel
Resistance
20GR
RoHS Compliant
No
Slew Rate
4.5V/µs
Voltage Gain
80dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AMP01GS-REEL Datasheet
Download the complete datasheet for Analog Devices AMP01GS-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

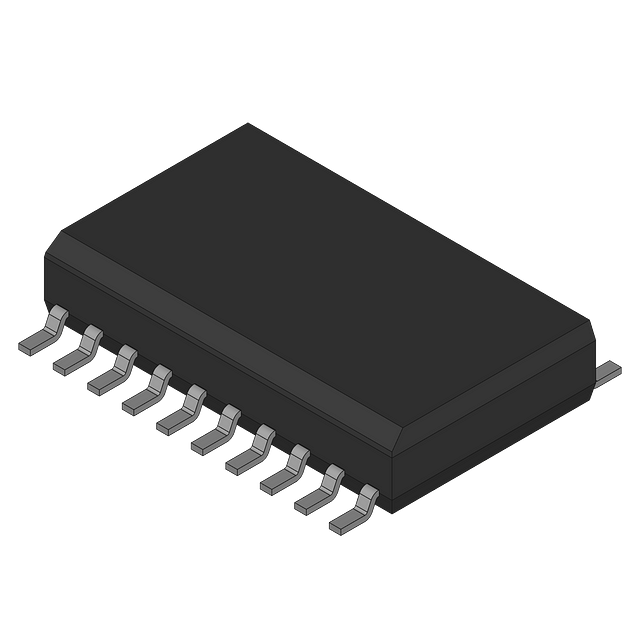

Product Images
