Quad comparator IC featuring a 3mV input offset voltage and 2mV hysteresis. Offers a 17ns response time and 30ns propagation delay. Operates with a max supply voltage of 16V and a quiescent current of 6mA. Packaged in a 16-pin TSSOP on tape and reel.
PackageTSSOP
Current2mA
Power110mW
Quick Jump:
Technical Specifications
Analog Devices CMP401GRU-REEL technical specifications.
General
Package/Case
TSSOP
Common Mode Rejection Ratio
60dB
Contact Plating
Tin, Lead
Hysteresis
2mV
Input Bias Current
3uA
Input Offset Voltage (Vos)
3mV
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Number of Elements
4
Output Type
TTL
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
110mW
Power Supply Rejection Ratio (PSRR)
60dB
Propagation Delay
30ns
Quiescent Current
6mA
Response Time
17ns
RoHS Compliant
No
Supply Current
2mA
Technology
BICMOS
Type
General Purpose
Voltage Gain
80dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices CMP401GRU-REEL Datasheet
Download the complete datasheet for Analog Devices CMP401GRU-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

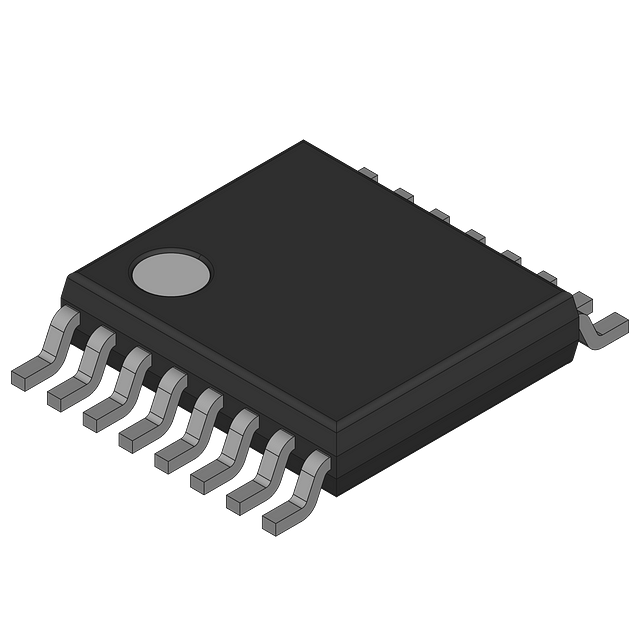

Product Images
