Analog Devices
LT1054CS8
LT1054 - Switched-Capacitor Voltage Converter with Regulator; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C
PackageSOIC N
Quick Jump:
Technical Specifications
Analog Devices LT1054CS8 technical specifications.
General
Package/Case
SOIC N
Lead Free
Contains Lead
Max Input Voltage
15V
Min Input Voltage
3.5V
Max Operating Temperature
100°C
Min Operating Temperature
0°C
Max Output Current
100mA
Max Supply Voltage
15V
Min Supply Voltage
3.5V
Number of Outputs
1
Operating Supply Current
2.5mA
Output Current
100mA
Output Type
Adjustable
Output Voltage
-5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
No
Synchronous Rectifier
No
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices LT1054CS8 Datasheet
Download the complete datasheet for Analog Devices LT1054CS8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

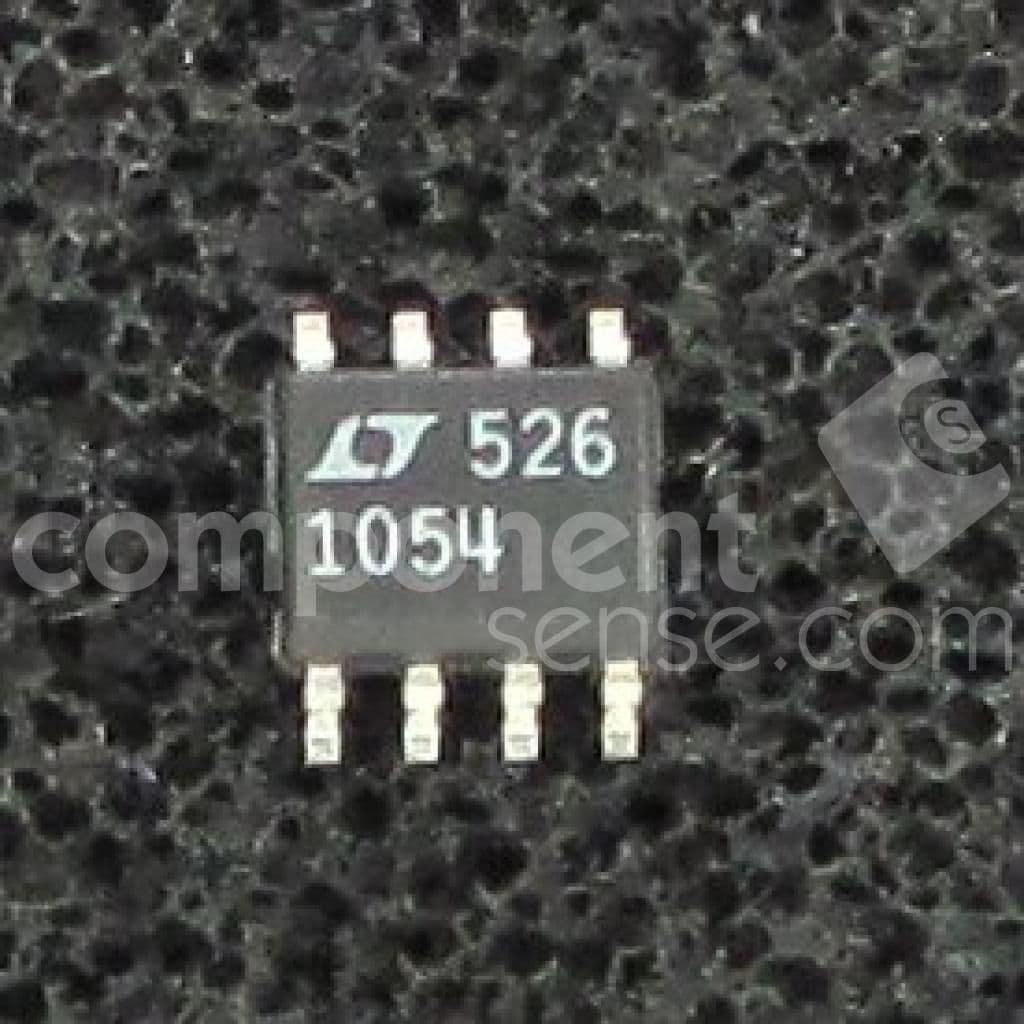

Product Images
