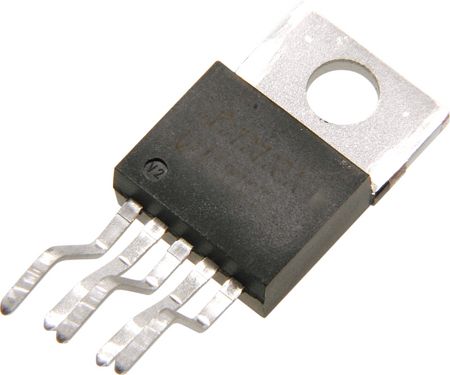

Adjustable DC/DC controller and regulator IC for power management applications. Features a wide input voltage range from 3V to 60V and supports adjustable output voltages from 1.25V up to 65V. Delivers up to 5A output current and 100W output power. Operates across a temperature range of 0°C to 100°C and is housed in a TO-220 package for through-hole mounting. Supports Flyback, Forward Converter, and Cuk topologies.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LT1070CT#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Height | 15.748mm |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Input Voltage | 60V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 5A |
| Max Output Power | 100W |
| Max Output Voltage | 65V |
| Min Output Voltage | 1.25V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback, Forward Converter, Cuk |
| Width | 4.572mm |
| RoHS | Compliant |
