Adjustable positive linear voltage regulator IC, delivering up to 800mA output current. Features a low dropout voltage of 1.1V and a wide input voltage range from 2.45V to 15V. Offers adjustable output voltage from 1.2V up to 10V with 1% accuracy. Operates within a temperature range of 0°C to 125°C and is housed in a compact SOT-223 package. This RoHS compliant component provides a Power Supply Rejection Ratio (PSRR) of 75dB.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1117CST#PBF technical specifications.
General
| Package/Case | SOT-223 |
| Dropout Voltage | 1.1V |
| Height | 1.7mm |
| Lead Free | Lead Free |
| Length | 6.71mm |
| Min Current Limit | 800mA |
| Max Input Voltage | 15V |
| Min Input Voltage | 2.45V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 800mA |
| Max Output Voltage | 10V |
| Min Output Voltage | 1.2V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 800mA |
| Output Type | Adjustable |
| Output Voltage | 13.7V |
| Output Voltage Accuracy | 1% |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.262V |
| RoHS Compliant | Yes |
| Width | 3.71mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1117CST#PBF Datasheet
Download the complete datasheet for Analog Devices LT1117CST#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

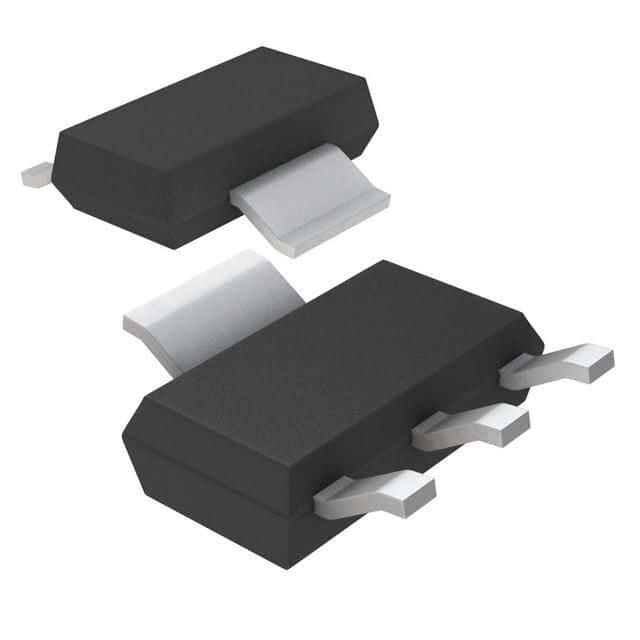

Product Images
