Adjustable DC-DC controller and regulator for step-down/step-up conversion, operating from 3V to 40V input. Delivers up to 11A output current and 100W output power, with an adjustable output voltage up to 40V. Features a 100kHz switching frequency and a quiescent current of 50µA. Packaged in a 5-pin TO-220 (TO-220) with a maximum operating temperature of 100°C. RoHS compliant and lead-free.
Frequency100kHz
PackageT
Quick Jump:
Technical Specifications
Analog Devices LT1170CT#PBF technical specifications.
General
| Package/Case | T |
| Frequency | 100kHz |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 11A |
| Max Output Power | 100W |
| Max Output Voltage | 40V |
| Min Output Voltage | 1.244V |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 50 |
| Packaging | Cut Tape |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback, Cuk |
| Width | 4.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1170CT#PBF Datasheet
Download the complete datasheet for Analog Devices LT1170CT#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

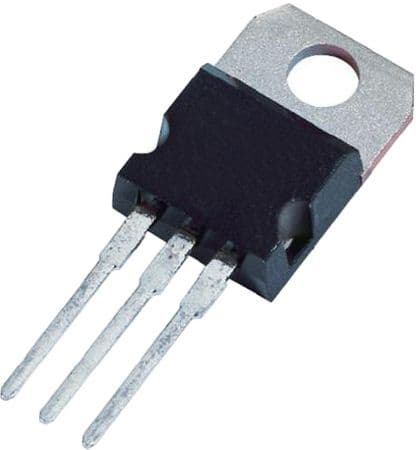

Product Images
