High-performance current feedback amplifier IC featuring a 55MHz bandwidth and 900V/µs slew rate. This single-channel amplifier offers a 2A output current per channel and operates from ±5V to ±15V dual supplies or 8V to 36V single supplies. With a 35MHz -3dB bandwidth and 66MHz nominal gain bandwidth product, it provides 71dB voltage gain. Packaged in a TO-263-8 (DDPAK-7) surface-mount case, this RoHS compliant component is suitable for general amplification applications.
PackageTO-263-8
Quick Jump:
Technical Specifications
Analog Devices LT1210CR#PBF technical specifications.
General
| -3db Bandwidth | 35MHz |
| Bandwidth | 55MHz |
| Package/Case | TO-263-8 |
| Common Mode Rejection Ratio | 55dB |
| Gain Bandwidth Product | 35MHz |
| Height | 10.922mm |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 50mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 8V |
| Nominal Gain Bandwidth Product | 66MHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 35mA |
| Output Current per Channel | 2A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 900V/µs |
| Technology | BIPOLAR |
| Voltage Gain | 71dB |
| Width | 4.572mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1210CR#PBF Datasheet
Download the complete datasheet for Analog Devices LT1210CR#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

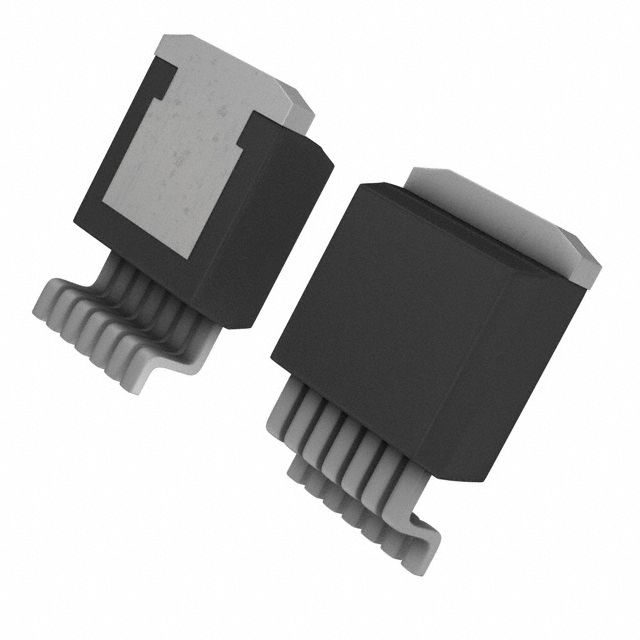

Product Images
