The LT1370HVIT7#PBF is a flyback DC/DC controller with an adjustable output voltage of 42V and a maximum output current of 6A. It is packaged in a TO-220-7 package and is lead free. The device operates over a temperature range of 0°C to 70°C. It is RoHS compliant and available in a quantity of 50 per rail/Tube packaging.
PackageTO-220-7
Quick Jump:
Technical Specifications
Analog Devices LT1370HVIT7#PBF technical specifications.
General
| Package/Case | TO-220-7 |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Outputs | 1 |
| Output Current | 6A |
| Output Type | Adjustable |
| Output Voltage | 42V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1370HVIT7#PBF Datasheet
Download the complete datasheet for Analog Devices LT1370HVIT7#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

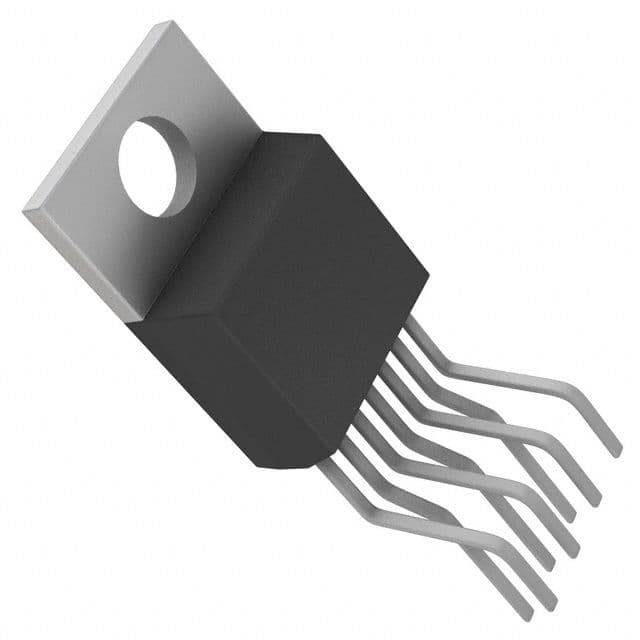

Product Images
