Adjustable DC-DC SEPIC controller IC with a maximum output current of 4.5A. Features a wide input voltage range from 5V to 32V and an adjustable output voltage up to 27.52V. Operates across a temperature range of 0°C to 125°C and is housed in a D2PAK package. This positive output, non-synchronous rectifier IC is RoHS compliant.
PackageR
Quick Jump:
Technical Specifications
Analog Devices LT1374HVCR#PBF technical specifications.
General
| Package/Case | R |
| Height | 10.922mm |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Input Voltage | 32V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 4.5A |
| Max Output Voltage | 27.52V |
| Min Output Voltage | 2.42V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 4.5A |
| Output Type | Adjustable |
| Output Voltage | 27.52V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | SEPIC |
| Width | 4.572mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1374HVCR#PBF Datasheet
Download the complete datasheet for Analog Devices LT1374HVCR#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

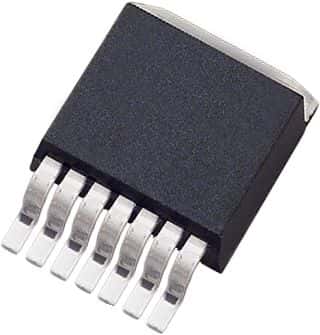

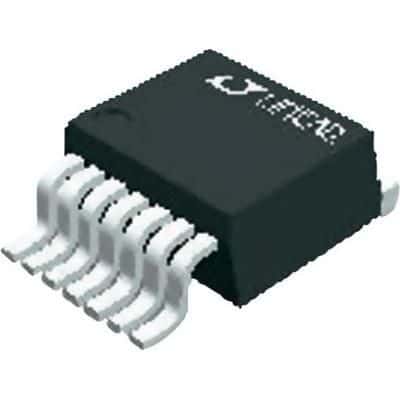

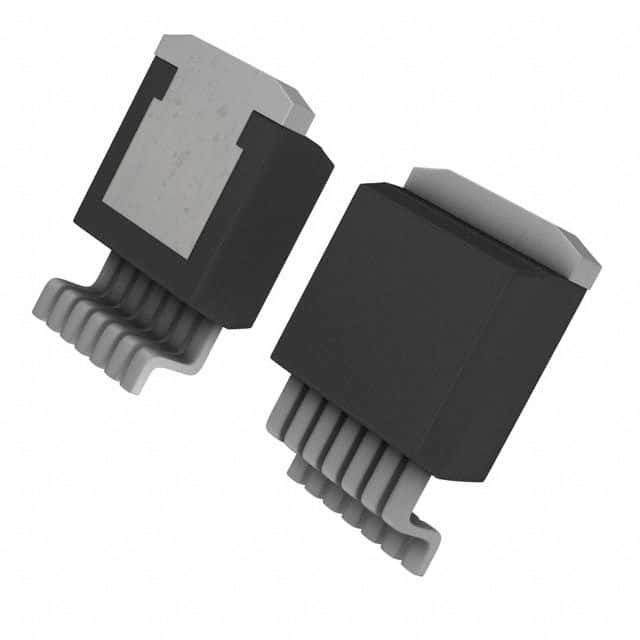

Product Images
