Adjustable positive linear voltage regulator IC with a maximum output current of 7A. Features a low dropout voltage of 540mV and an adjustable output voltage range from 1.25V to 4.65V. Operates with a minimum input voltage of 1.79V and a maximum input voltage of 6V. Housed in a 5DDPAK package, this RoHS compliant component offers a maximum operating temperature of 125°C.
PackageQ
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1580CQ#PBF technical specifications.
General
| Package/Case | Q |
| Dropout Voltage | 540mV |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 10.54mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 1.79V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 7A |
| Max Output Voltage | 4.65V |
| Min Output Voltage | 1.25V |
| Number of Outputs | 1 |
| Operating Supply Current | 10mA |
| Output Current | 7A |
| Output Type | Adjustable |
| Output Voltage | 4.65V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.257V |
| RoHS Compliant | Yes |
| Width | 9.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1580CQ#PBF Datasheet
Download the complete datasheet for Analog Devices LT1580CQ#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

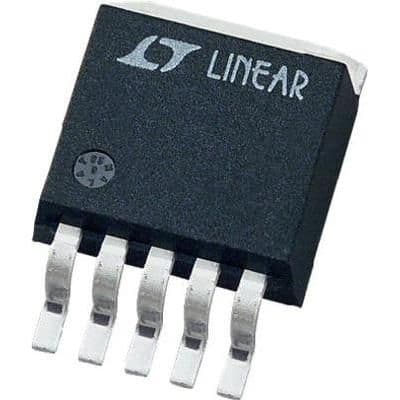

Product Images
