Micropower DC-DC controller and regulator, featuring a boost or SEPIC topology, converts 1V to 15V input to a 1.23V to 36V adjustable or fixed output. This single-output device delivers up to 300mA maximum output current, with a 100mA typical output current. Packaged in a 5-pin TSOT-23 (SOT-23-5) surface-mount case, it operates from -40°C to 85°C and is RoHS compliant. Dimensions are 3.1mm length, 1.75mm width, and 1.3mm height.
PackageSOT-23-5
Quick Jump:
Technical Specifications
Analog Devices LT1615ES5-1#TRMPBF technical specifications.
General
| Package/Case | SOT-23-5 |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Input Voltage | 15V |
| Min Input Voltage | 1V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Max Output Voltage | 34V |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 1V |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Type | Adjustable, Fixed |
| Output Voltage | 36V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Topology | Boost, SEPIC |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1615ES5-1#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT1615ES5-1#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

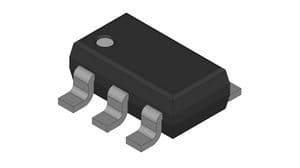

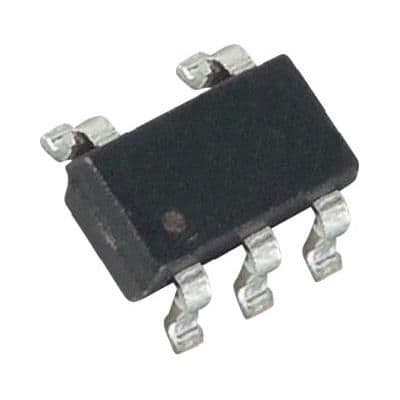

Product Images
