5V, 500mA LDO linear voltage regulator with 300mV dropout voltage. Features a 1.8V to 20V input voltage range, 520mA minimum current limit, and 65dB PSRR. Operates from -40°C to 125°C with a 30µA quiescent current. Packaged in a 12-pin DFN, supplied on tape and reel.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT1763CDE-5#TRPBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
300mV
Min Current Limit
520mA
Max Input Voltage
20V
Min Input Voltage
1.8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
30uA
Output Current
500mA
Output Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1763CDE-5#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT1763CDE-5#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

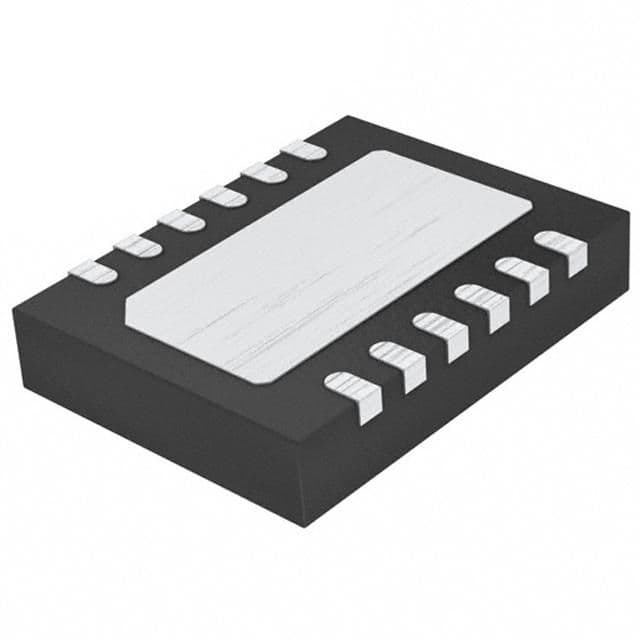

Product Images
