Adjustable positive linear voltage regulator IC, featuring a 500mA output current and a 300mV dropout voltage. Operates with a wide input voltage range from 1.8V to 20V, providing an adjustable output voltage up to 20V. Offers a low operating supply current of 30uA and a Power Supply Rejection Ratio (PSRR) of 65dB. Packaged in a 12-pin DFN, this lead-free and RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageDFN
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1763CDE#PBF technical specifications.
General
| Package/Case | DFN |
| Dropout Voltage | 300mV |
| Lead Free | Lead Free |
| Min Current Limit | 520mA |
| Max Input Voltage | 20V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 1.22V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 30uA |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 20V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1763CDE#PBF Datasheet
Download the complete datasheet for Analog Devices LT1763CDE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

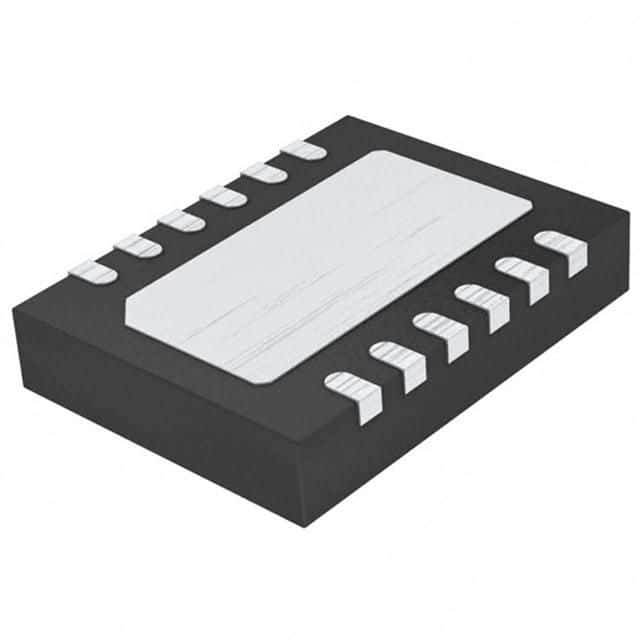

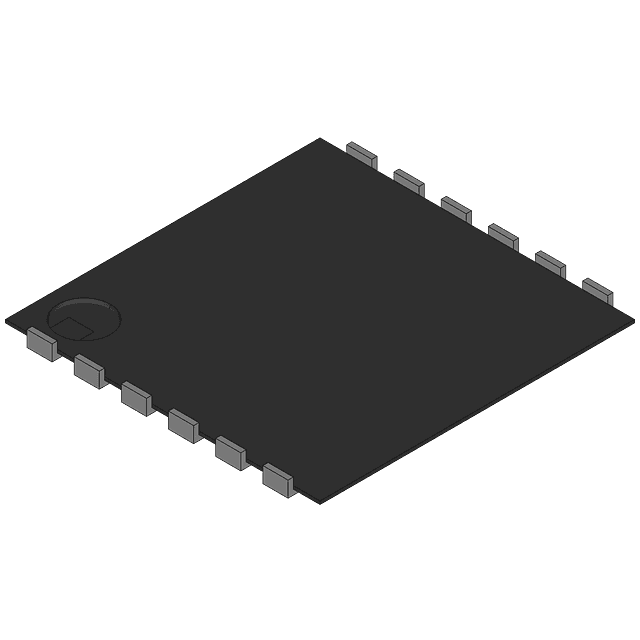

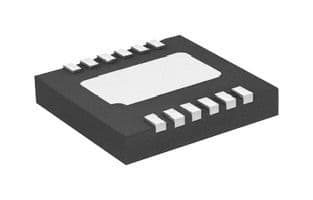

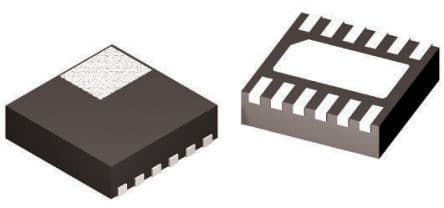

Product Images
