Positive fixed 5V output linear voltage regulator IC with 500mA output current and 300mV dropout voltage. Features a 1.8V to 20V input voltage range, 520mA minimum current limit, and 65dB power supply rejection ratio. Operates from -40°C to 125°C in a 12-pin DFN package.
PackageDFN
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1763IDE-5#PBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
300mV
Min Current Limit
520mA
Max Input Voltage
20V
Min Input Voltage
1.8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
30uA
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
91
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1763IDE-5#PBF Datasheet
Download the complete datasheet for Analog Devices LT1763IDE-5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

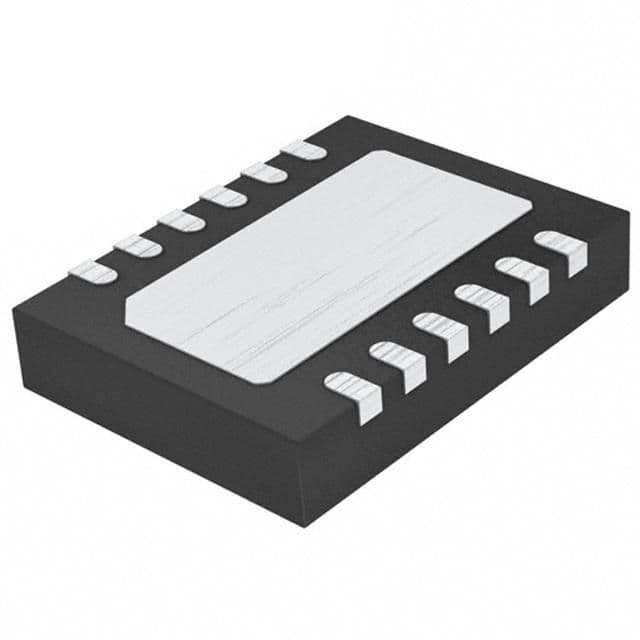

Product Images
