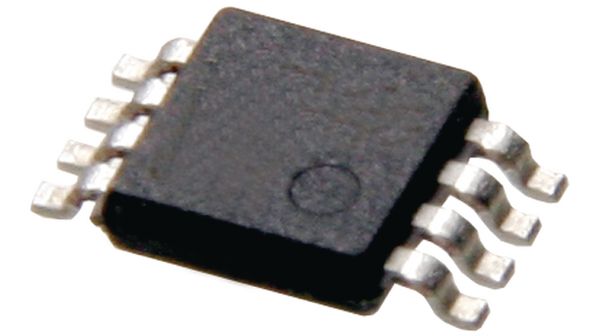

The LT1936IMS8E#PBF is an adjustable DC/DC controller from Analog Devices, packaged in a 3mm x 3mm MSOP. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device can handle a maximum output current of 1.4A and a maximum output voltage of 31.32V, with a minimum input voltage of 3.6V. It is available in a package quantity of 50 units, packaged in a rail/tube format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LT1936IMS8E#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LT1936IMS8E#PBF technical specifications.
| Package/Case | MSOP |
| Height | 0.9984mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.4A |
| Max Output Voltage | 31.32V |
| Min Output Voltage | 1.2V |
| Number of Outputs | 1 |
| Output Current | 1.4A |
| Output Type | Adjustable |
| Output Voltage | 31.32V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 3mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices LT1936IMS8E#PBF to view detailed technical specifications.
