SEPIC switching regulator, current-mode control, featuring a maximum output current of 4.5A and a maximum switching frequency of 560kHz. Operates with input voltages ranging from 4V to 15V, delivering an adjustable output voltage from 1.21V to 12.9V. This bipolar component is housed in a PSSO7 package, suitable for operation across a wide temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageR
Quick Jump:
Technical Specifications
Analog Devices LT1959IR#PBF technical specifications.
General
| Package/Case | R |
| Lead Free | Lead Free |
| Max Input Voltage | 15V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 12.9V |
| Min Output Voltage | 1.21V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 4.5A |
| Output Type | Adjustable |
| Output Voltage | 2.42V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | SEPIC |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1959IR#PBF Datasheet
Download the complete datasheet for Analog Devices LT1959IR#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

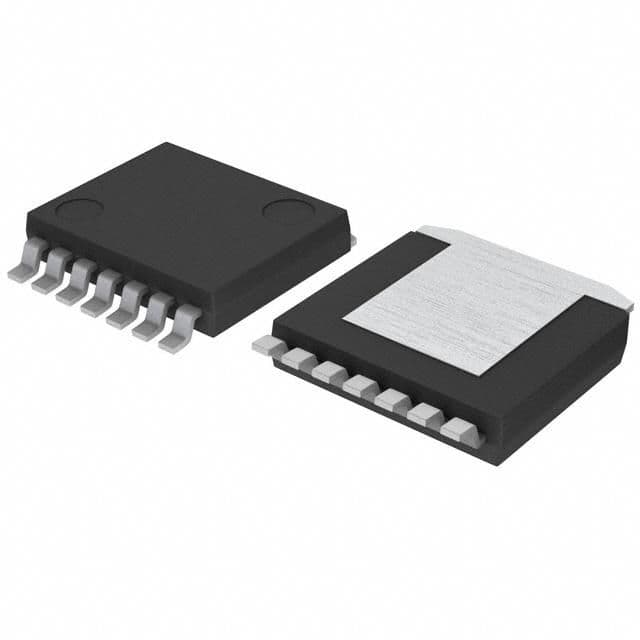

Product Images
