Adjustable positive linear voltage regulator IC with a maximum output current of 1.5A. Features a low dropout voltage of 340mV and a wide input voltage range from 2.1V to 20V. Offers an adjustable output voltage up to 20V, with a reference voltage of 1.21V. Operates with a quiescent current of 1mA and a PSRR of 63dB. Housed in a 5-pin DDPAK package, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageQ
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT1963AEQ#PBF technical specifications.
General
Package/Case
Q
Dropout Voltage
340mV
Height
4.57mm
Lead Free
Lead Free
Length
10.54mm
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
20V
Min Output Voltage
1.21V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1mA
Output Current
1.5A
Output Type
Adjustable
Output Voltage
20V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Quiescent Current
1mA
Reach SVHC Compliant
No
Reference Voltage
1.21V
RoHS Compliant
Yes
Width
9.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT1963AEQ#PBF Datasheet
Download the complete datasheet for Analog Devices LT1963AEQ#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

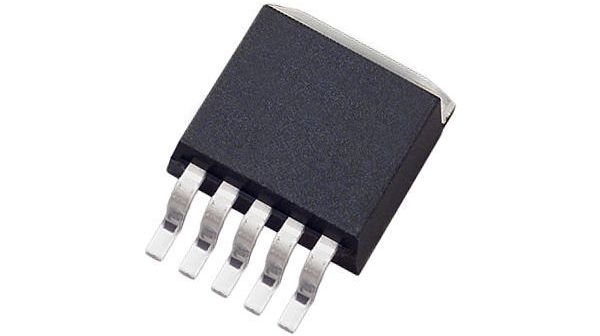

Product Images
