Single-channel, rail-to-rail output operational amplifier featuring a 560kHz gain bandwidth product and 110kHz -3dB bandwidth. Offers 50µV input offset voltage, 2.5nA input bias current, and 1.17MΩ input resistance. Operates from a 1.35V to 18V dual supply or 2.4V to 40V single supply, with a typical operating supply current of 130µA. Provides 75dB CMRR and 105dB PSRR, with a 0.12V/µs slew rate and 21mA output current per channel. Packaged in a 10-MSOP, tape and reel, lead-free, RoHS compliant component.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT1991ACMS#TRPBF technical specifications.
General
| -3db Bandwidth | 110kHz |
| Package/Case | MSOP |
| Common Mode Rejection Ratio | 75dB |
| Gain Bandwidth Product | 560kHz |
| Input Bias Current | 2.5nA |
| Input Offset Voltage (Vos) | 50uV |
| Input Resistance | 1.17MR |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1.35V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 2.4V |
| Nominal Gain Bandwidth Product | 560kHz |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 130uA |
| Output Current per Channel | 21mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 105dB |
| RoHS Compliant | Yes |
| Slew Rate | 0.12V/µs |
| Unity Gain Bandwidth Product | 560kHz |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1991ACMS#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT1991ACMS#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

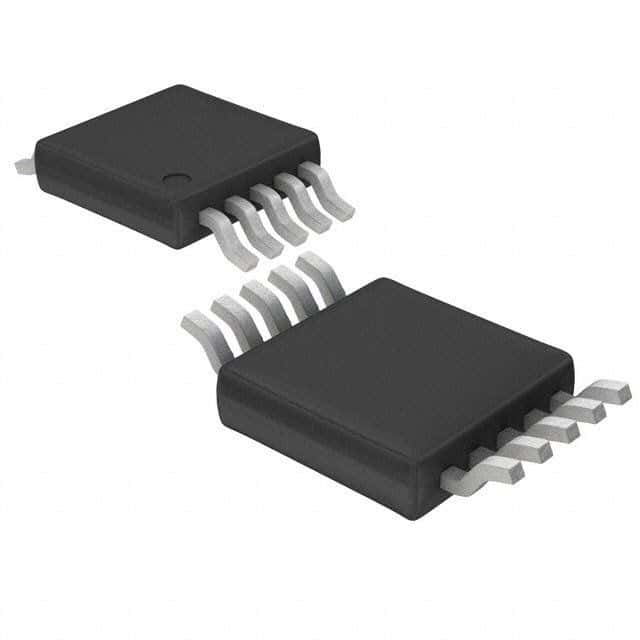

Product Images
