Analog Devices
LT1993CUD-10#PBF
700MHz Diff Op Amp IC, 1100V/µs Slew Rate, 45dB CMRR, 15pA Ib, 5.5V Max
Differential amplifier IC featuring a 700MHz -3dB bandwidth and 700MHz gain bandwidth product. This single-channel, dual-circuit amplifier offers a 1100V/µs slew rate and 45mA output current per channel. Key specifications include 45dB CMRR, 15pA input bias current, and 6.5mV input offset voltage. Operating from a 4V to 5.5V supply, it is housed in a lead-free, RoHS compliant QFN EP package.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LT1993CUD-10#PBF technical specifications.
General
| -3db Bandwidth | 700MHz |
| Amplifier Type | DIFFERENTIAL |
| Bandwidth | 700MHz |
| Package/Case | QFN EP |
| Common Mode Rejection Ratio | 45dB |
| Input Bias Current | 15pA |
| Input Offset Voltage (Vos) | 6.5mV |
| Input Resistance | 122R |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Nominal Gain Bandwidth Product | 700MHz |
| Number of Channels | 1 |
| Number of Circuits | 2 |
| Number of Elements | 3 |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 45mA |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 55dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 1100V/µs |
| Voltage Gain | 0.827dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1993CUD-10#PBF Datasheet
Download the complete datasheet for Analog Devices LT1993CUD-10#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

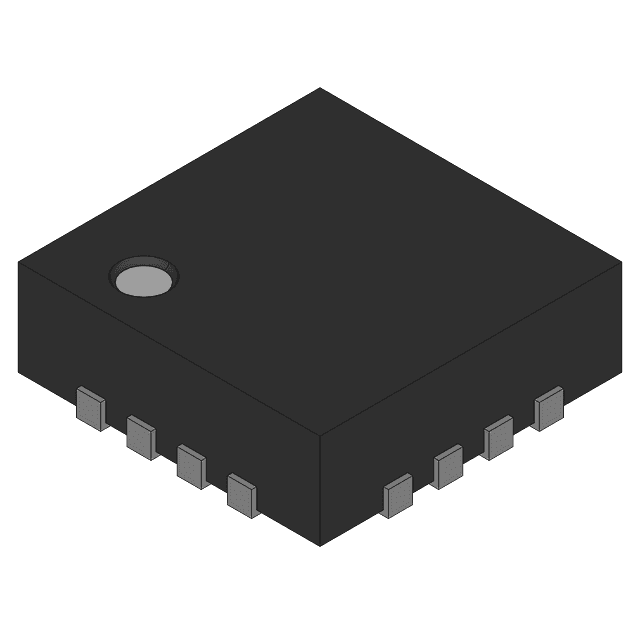

Product Images
