Differential amplifier IC featuring a 700MHz bandwidth and 1100V/µs slew rate. Offers 45dB Common Mode Rejection Ratio and 55dB Power Supply Rejection Ratio. Operates with a 4V to 5.5V supply voltage and provides 45mA output current per channel. Input offset voltage is 6.5mV with 5µA input bias current. Designed for a -40°C to 85°C operating temperature range.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LT1993IUD-10#PBF technical specifications.
General
| -3db Bandwidth | 700MHz |
| Amplifier Type | DIFFERENTIAL |
| Bandwidth | 700MHz |
| Package/Case | QFN |
| Common Mode Rejection Ratio | 45dB |
| Input Bias Current | 5uA |
| Input Offset Voltage (Vos) | 6.5mV |
| Input Resistance | 122R |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Nominal Gain Bandwidth Product | 700MHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 2 |
| Number of Elements | 3 |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 45mA |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 55dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 1100V/µs |
| Voltage Gain | 0.827dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT1993IUD-10#PBF Datasheet
Download the complete datasheet for Analog Devices LT1993IUD-10#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

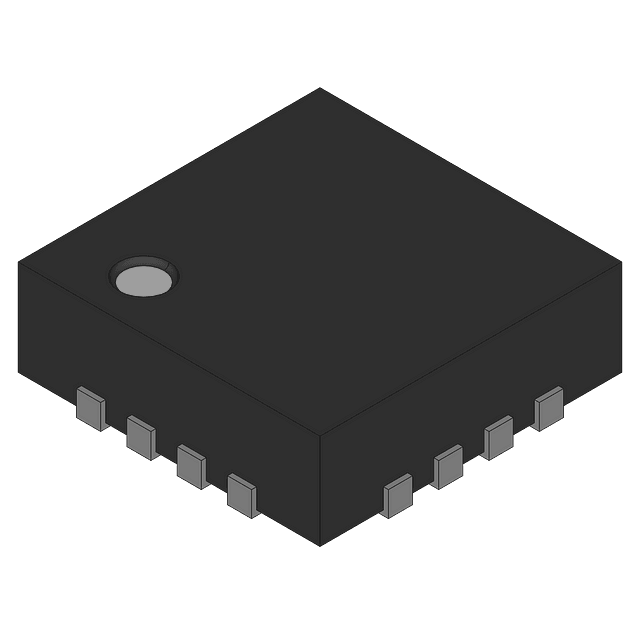

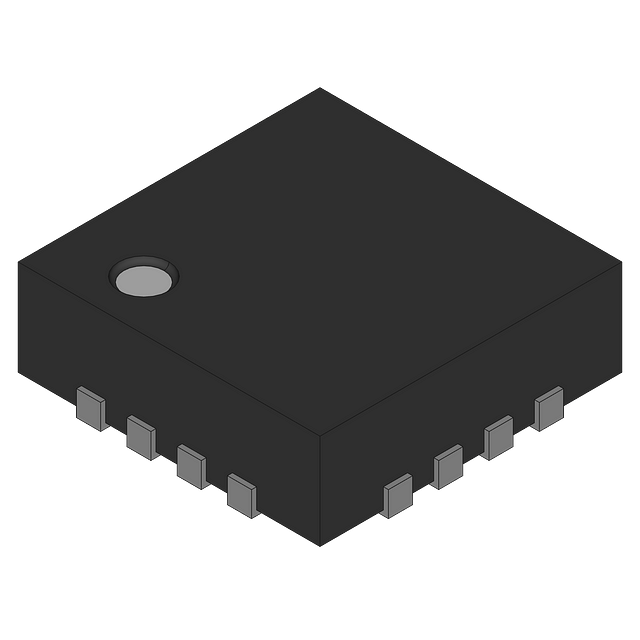

Product Images
