Adjustable positive linear voltage regulator IC, 1A output current, 9.5V maximum output voltage, and 10V maximum input voltage. Features a low 145mV dropout voltage and 1.1A minimum current limit. Operates across a wide temperature range of -40°C to 125°C with 70dB PSRR. Packaged in a 16-MSOP for tape and reel distribution.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LT3022EMSE#TRPBF technical specifications.
General
| Package/Case | SOP |
| Dropout Voltage | 145mV |
| Min Current Limit | 1.1A |
| Max Input Voltage | 10V |
| Min Input Voltage | 900mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 9.5V |
| Min Output Voltage | 200mV |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 400uA |
| Output Current | 1A |
| Output Voltage | 9.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3022EMSE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3022EMSE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

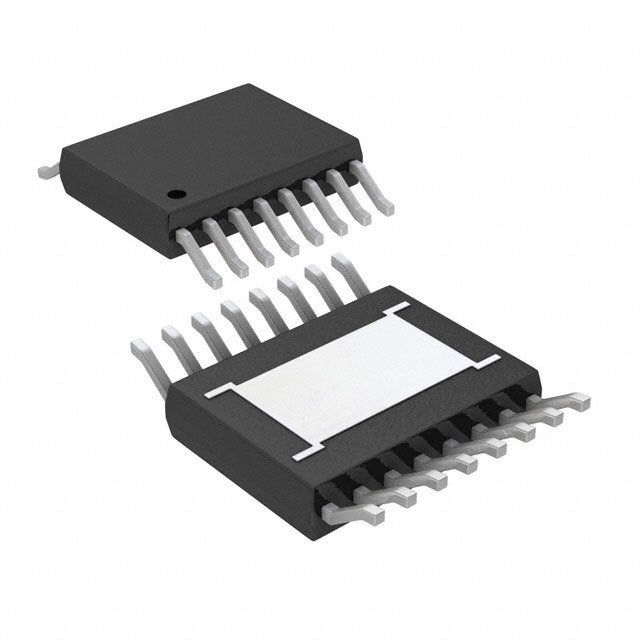

Product Images
