Dual-output, positive and negative linear voltage regulator IC featuring 5V output for both channels, each capable of delivering up to 150mA. This device offers a low dropout voltage of 300mV and operates with a maximum input voltage of 20V, from a minimum of 2.3V. It boasts a high Power Supply Rejection Ratio (PSRR) of 68dB and a low operating supply current of 25µA. Packaged in a DFN format, this RoHS compliant component is designed for efficient power management.
PackageDFN
PolarityPositive, Negative
Quick Jump:
Technical Specifications
Analog Devices LT3032EDE-5#PBF technical specifications.
General
| Package/Case | DFN |
| Current - Output 1 | 150mA |
| Current - Output 2 | 150mA |
| Dropout Voltage | 300mV |
| Min Current Limit | 170mA |
| Max Input Voltage | 20V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Operating Supply Current | 25uA |
| Output Current | 150mA |
| Output Voltage | 5V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Polarity | Positive, Negative |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3032EDE-5#PBF Datasheet
Download the complete datasheet for Analog Devices LT3032EDE-5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

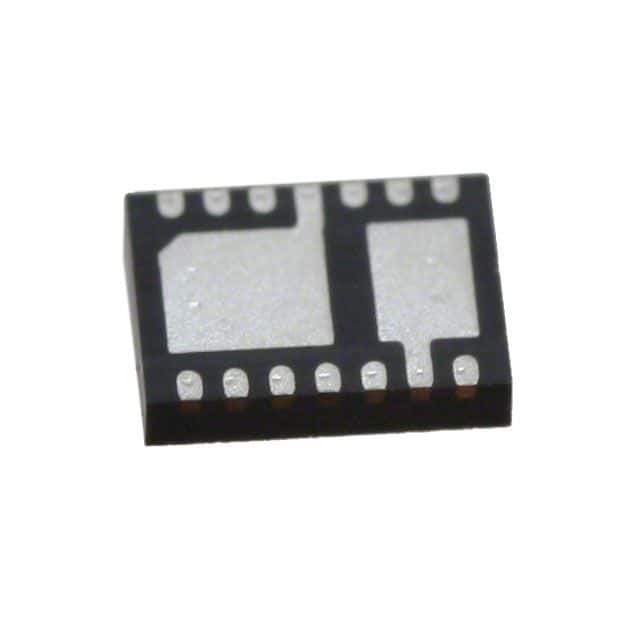

Product Images
