The LT3032MPDE-5#PBF is a dual linear voltage regulator from Analog Devices, featuring a dropout voltage of 300mV and a maximum output voltage of 5V. It operates over a temperature range of -55°C to 125°C and has a maximum output current of 150mA. The device is packaged in a lead-free DFN package and is RoHS compliant. The LT3032MPDE-5#PBF is suitable for use in applications requiring a stable and efficient voltage supply.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3032MPDE-5#PBF technical specifications.
General
| Package/Case | DFN |
| Dropout Voltage | 300mV |
| Lead Free | Lead Free |
| Min Current Limit | 170mA |
| Max Input Voltage | 20V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Operating Supply Current | 25uA |
| Output Current | 150mA |
| Output Voltage | 5V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3032MPDE-5#PBF Datasheet
Download the complete datasheet for Analog Devices LT3032MPDE-5#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

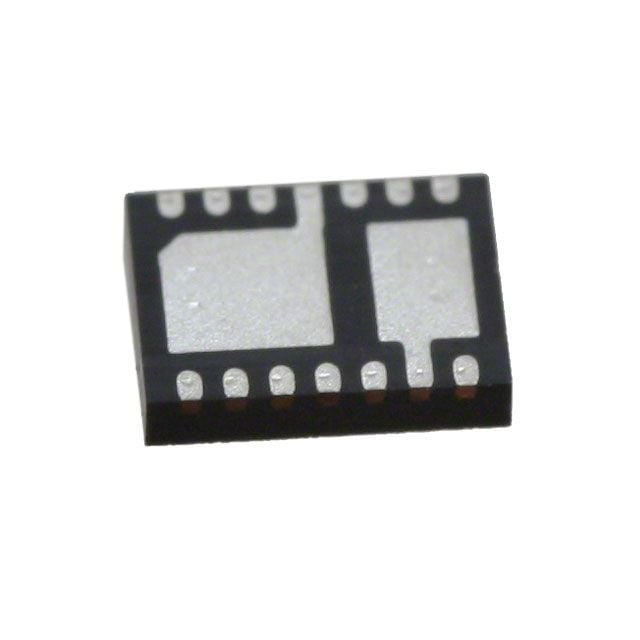

Product Images
