Technical Specifications
Analog Devices LT3060EDC-1.5#TRMPBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
300mV
Min Current Limit
110mA
Max Input Voltage
45V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Output Voltage
1.5V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Current
100mA
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
77dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3060EDC-1.5#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3060EDC-1.5#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

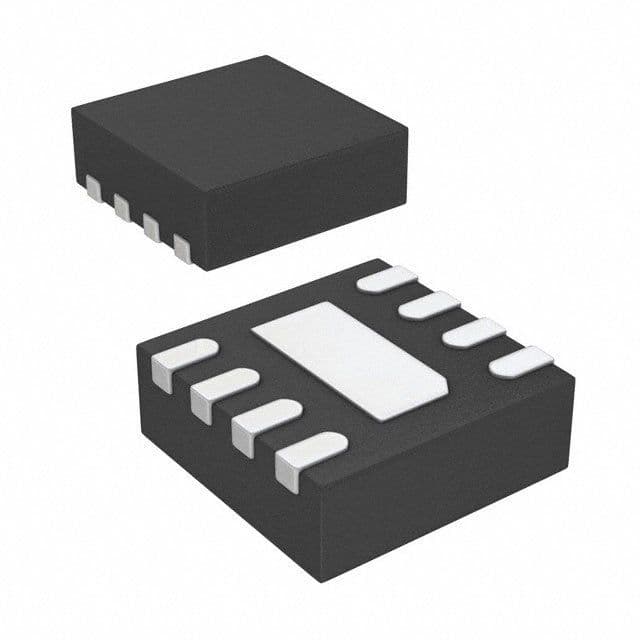

Product Images
