Fixed 5V output linear voltage regulator IC, delivering 100mA output current. Features a low 300mV dropout voltage and a wide 1.6V to 45V input voltage range. Operates with a low 40µA quiescent current and offers a high 67dB PSRR. Packaged in an 8-pin DFN, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3060EDC-5#TRMPBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
300mV
Min Current Limit
110mA
Max Input Voltage
45V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
67dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3060EDC-5#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3060EDC-5#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

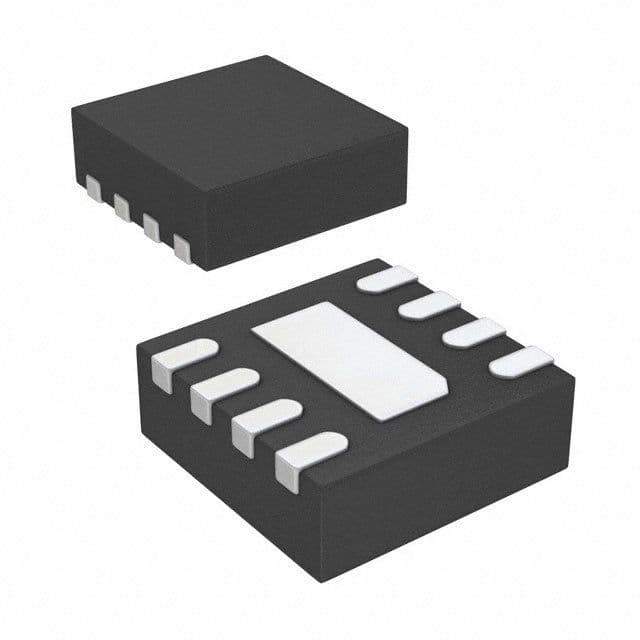

Product Images
