Technical Specifications
Analog Devices LT3060IDC-1.2#TRPBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
300mV
Min Current Limit
110mA
Max Input Voltage
45V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Current
100mA
Output Voltage
1.2V
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
79dB
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3060IDC-1.2#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3060IDC-1.2#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

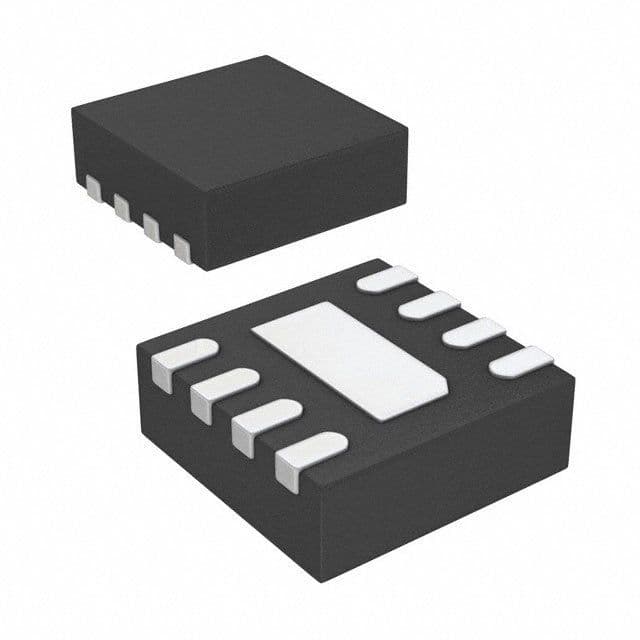

Product Images
