The LT3083ET#PBF is a linear voltage regulator with 1% accuracy and a maximum output voltage of 23V. It can handle a maximum output current of 3A and has a dropout voltage of 310mV. The device operates over a temperature range of -40°C to 125°C and is available in a T package. It is RoHS compliant and suitable for use in power management applications.
PackageT
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT3083ET#PBF technical specifications.
General
| Accuracy | 1% |
| Package/Case | T |
| Dropout Voltage | 310mV |
| Min Current Limit | 3A |
| Max Input Voltage | 23V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 23V |
| Min Output Voltage | 0uV |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 350uA |
| Output Current | 3A |
| Output Voltage | 23V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 85dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3083ET#PBF Datasheet
Download the complete datasheet for Analog Devices LT3083ET#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

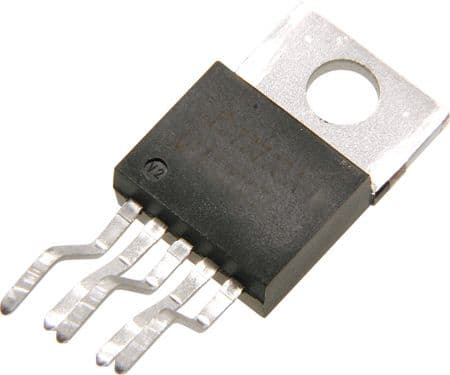

Product Images
