The LT3083IDF#TRPBF is a linear voltage regulator from Analog Devices, featuring a dropout voltage of 310mV and a maximum output voltage of 23V. It operates within a temperature range of -40°C to 125°C and has a maximum output current of 3A. The device is packaged in a DFN package and is available in quantities of 2500 on tape and reel. It is RoHS compliant and has a power supply rejection ratio of 85dB.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3083IDF#TRPBF technical specifications.
General
| Package/Case | DFN |
| Dropout Voltage | 310mV |
| Min Current Limit | 3A |
| Max Input Voltage | 23V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 23V |
| Min Output Voltage | 0uV |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 350uA |
| Output Current | 3A |
| Output Voltage | 23V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 85dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3083IDF#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3083IDF#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

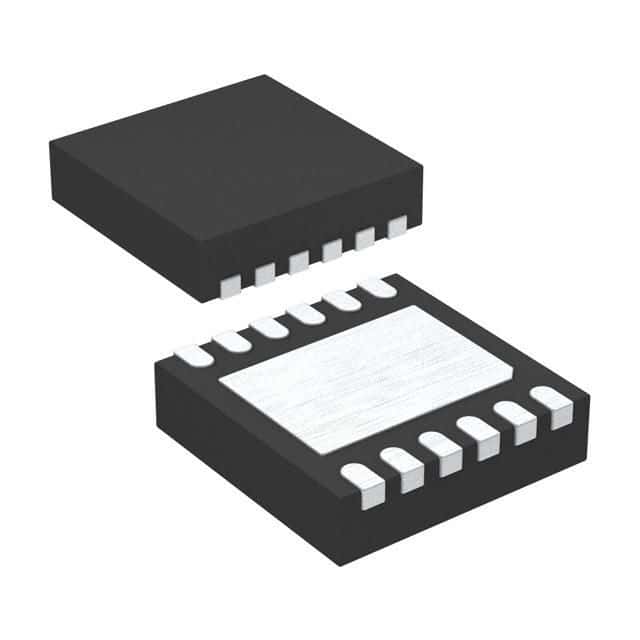

Product Images
