Positive LDO regulator with a 500mA output current and 1% output voltage accuracy. Features a wide input voltage range from 1.2V to 36V, a dropout voltage of 1.35V, and a minimum current limit of 500mA. Operates across a temperature range of -40°C to 125°C. Housed in a 6-pin DFN package and supplied on tape and reel.
PackageDFN
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT3085IDCB#TRMPBF technical specifications.
General
| Package/Case | DFN |
| Dropout Voltage | 1.35V |
| Lead Free | Contains Lead |
| Min Current Limit | 500mA |
| Max Input Voltage | 36V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Current | 300uA |
| Output Current | 500mA |
| Output Voltage | 36V |
| Output Voltage Accuracy | 1% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 500uA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3085IDCB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3085IDCB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

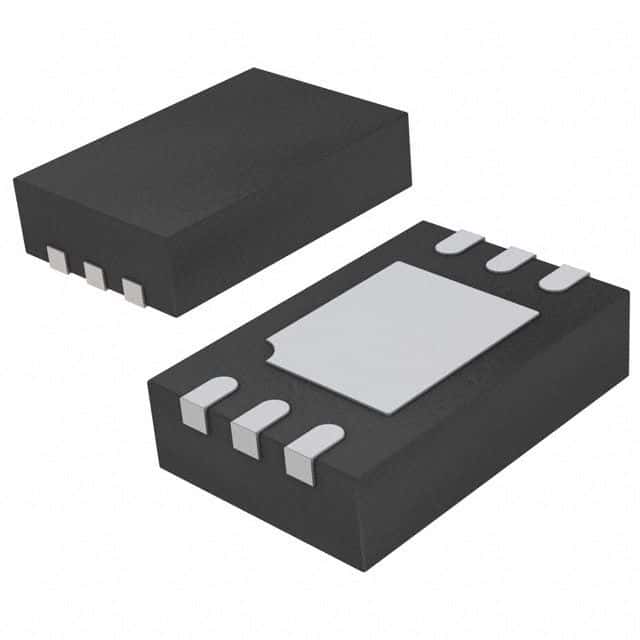

Product Images
