Negative adjustable linear voltage regulator IC, featuring a -36V to -1.5V input voltage range and a 300mV dropout voltage. Delivers up to 600mA output current with an adjustable output voltage from -32V to 0V, maintaining 1% accuracy. Operates across a -40°C to 125°C temperature range, housed in a 12-lead MSOP package for surface mounting. RoHS compliant.
PackageMSOP
MountingSurface Mount
PolarityNegative
Quick Jump:
Technical Specifications
Analog Devices LT3090EMSE#PBF technical specifications.
General
Package/Case
MSOP
Dropout Voltage
300mV
Max Input Voltage
-1.5V
Min Input Voltage
-36V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
0V
Min Output Voltage
-32V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
600mA
Output Type
Adjustable
Output Voltage
-32V
Output Voltage Accuracy
1%
Package Quantity
37
Packaging
Rail/Tube
Polarity
Negative
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3090EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3090EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

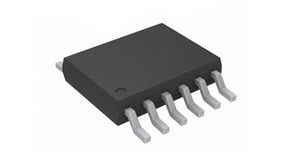

Product Images
