Precision current source IC with 1% accuracy, capable of sourcing up to 200mA. Features a wide input voltage range from 1.2V to 40V and operates with a low supply current of 300µA. Packaged in an 8-pin DFN with dimensions of 3mm, suitable for operation across a temperature range of -40°C to 125°C. RoHS compliant.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3092EDD#PBF technical specifications.
General
Accuracy
1%
Package/Case
DFN
Length
3mm
Max Input Voltage
40V
Min Input Voltage
1.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
40V
Min Supply Voltage
1.2V
Operating Supply Current
300uA
Output Current
200mA
Package Quantity
121
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3092EDD#PBF Datasheet
Download the complete datasheet for Analog Devices LT3092EDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

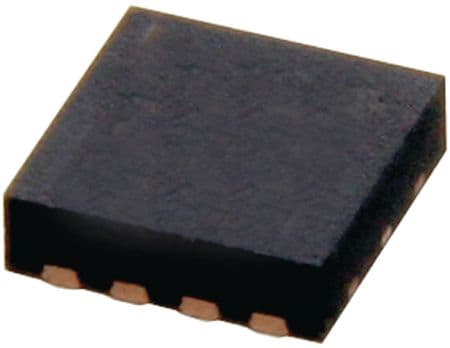

Product Images
