The LT323AT#PBF is a 5V linear voltage regulator with a maximum output current of 3A. It is packaged in a TO-220 case and is suitable for through-hole mounting. The device operates over a temperature range of 0°C to 125°C and is RoHS compliant. The LT323AT#PBF has a nominal output voltage of 5V with an accuracy of 1% and a quiescent current of 20mA.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT323AT#PBF technical specifications.
General
| Package/Case | TO-220 |
| Max Input Voltage | 20V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 1% |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 20mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT323AT#PBF Datasheet
Download the complete datasheet for Analog Devices LT323AT#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

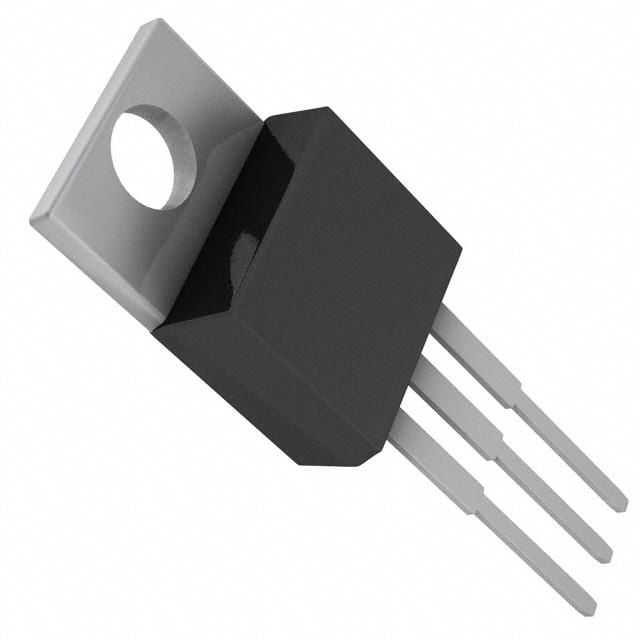

Product Images
