Boost (step-up) LED driver IC with one output, capable of 30V/340mA output from a 2.7V-16V input. Features a 2.4MHz switching frequency and 79% efficiency. Packaged in a compact TSOT-23-6 (TSOT) SMD/SMT termination, measuring 2.9mm length, 1.75mm width, and 0.9mm height. Operates within a -40°C to 85°C temperature range with a typical supply current of 3.3mA. RoHS compliant.
Frequency2.8MHz
PackageTSOT
Current5mA
Quick Jump:
Technical Specifications
Analog Devices LT3465AES6#TRMPBF technical specifications.
General
| Package/Case | TSOT |
| Efficiency | 79% |
| Frequency | 2.8MHz |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 16V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 3.3mA |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 1 |
| Number of Segments | 6 |
| Output Current | 340mA |
| Output Voltage | 30V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Termination | SMD/SMT |
| Topology | Boost |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3465AES6#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3465AES6#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

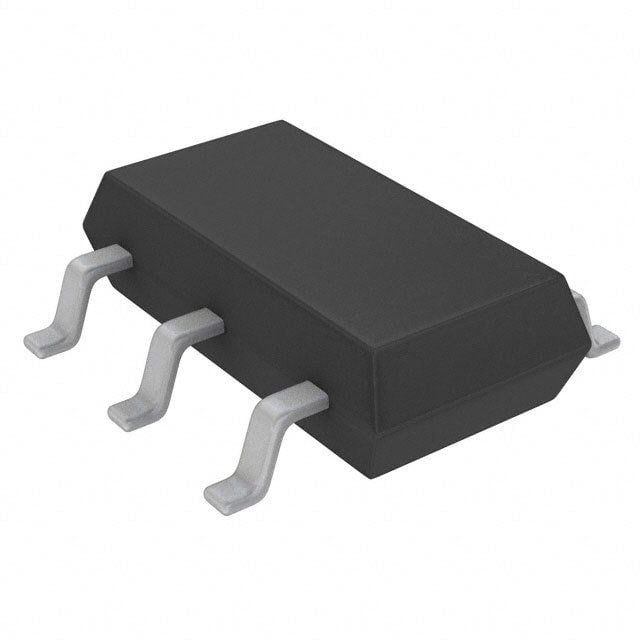

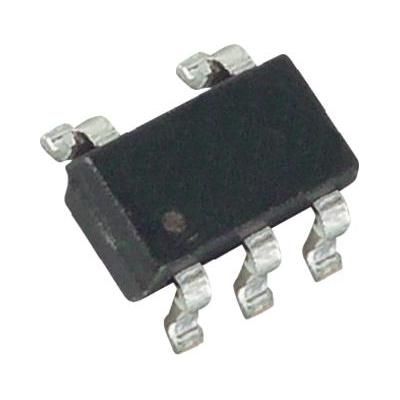

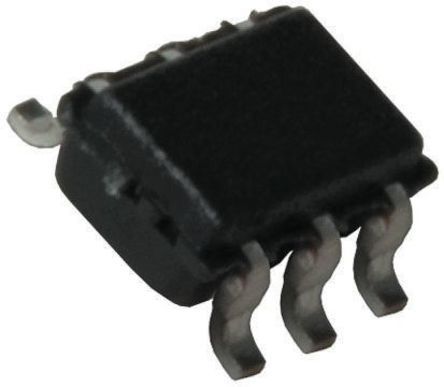

Product Images
