Dual-output, 2MHz boost LED driver IC with adjustable dimming. Features a 2.7V to 24V input voltage range and a maximum output voltage of 39.5V. Designed for 20 segments, this component operates within a -40°C to 85°C temperature range. Packaged in DFN EP, it is RoHS compliant and supplied on tape and reel.
Frequency2MHz
PackageDFN EP
Quick Jump:
Technical Specifications
Analog Devices LT3466EDD#TRPBF technical specifications.
General
| Package/Case | DFN EP |
| Frequency | 2MHz |
| Lead Free | Lead Free |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 2 |
| Number of Segments | 20 |
| Output Voltage | 39.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3466EDD#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3466EDD#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

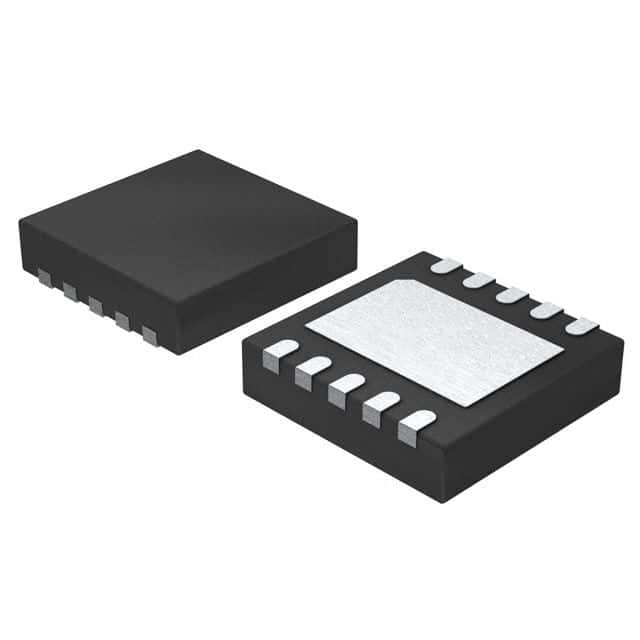

Product Images
