The LT3470ITS8#PBF is a single-output DC/DC controller from Analog Devices, packaged in a SOT-23 case. It operates over a temperature range of -40°C to 125°C and provides an adjustable output voltage of 16V. The device is capable of delivering an output current of 200mA. It is available in cut tape packaging and is RoHS compliant.
PackageSOT-23
Quick Jump:
Technical Specifications
Analog Devices LT3470ITS8#PBF technical specifications.
General
| Package/Case | SOT-23 |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 200mA |
| Output Type | Adjustable |
| Output Voltage | 16V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3470ITS8#PBF Datasheet
Download the complete datasheet for Analog Devices LT3470ITS8#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

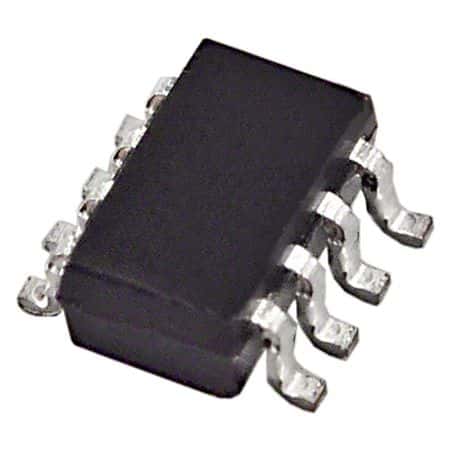

Product Images
