Analog Devices
LT3486EDHC#PBF
LED Driver 16 Segment 14000uA Supply Current Automotive 16-Pin DFN EP Tube
Frequency2.25MHz
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3486EDHC#PBF technical specifications.
General
| Package/Case | DFN |
| Frequency | 2.25MHz |
| Max Input Voltage | 24V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 2.5V |
| Number of Outputs | 2 |
| Number of Segments | 16 |
| Output Current | 1.3A |
| Output Voltage | 40V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3486EDHC#PBF Datasheet
Download the complete datasheet for Analog Devices LT3486EDHC#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

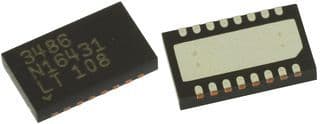

Product Images
