Single step-down DC-DC controller and regulator featuring an adjustable output voltage from 780mV to 34.2V. Accepts input voltages from 3.6V to 36V, delivering up to 1.2A output current. Operates within a temperature range of -40°C to 125°C. Housed in a compact 3mm x 2mm x 0.75mm DFN package, supplied on tape and reel. RoHS compliant and lead-free.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3493IDCB#TRMPBF technical specifications.
General
| Package/Case | DFN |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Voltage | 34.2V |
| Min Output Voltage | 780mV |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1.2A |
| Output Type | Adjustable |
| Output Voltage | 34.2V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3493IDCB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3493IDCB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

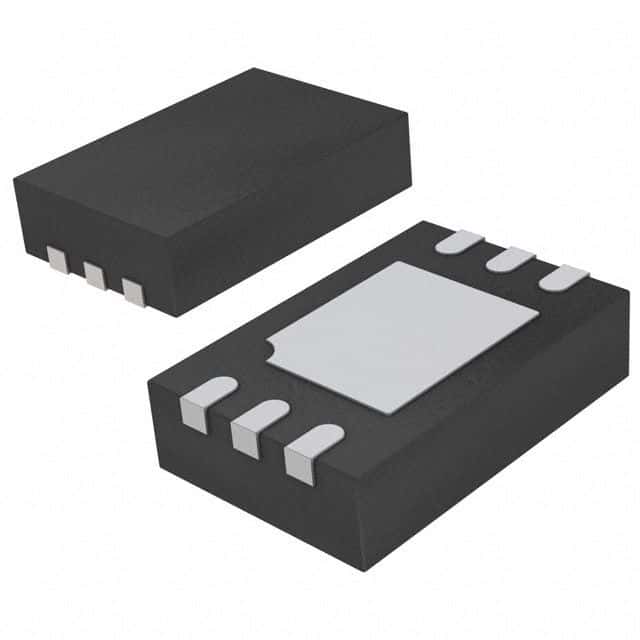

Product Images
