Quad buck DC/DC controller and regulator IC, featuring four 1A outputs with adjustable output voltage up to 40V. Operates from a 3.2V to 40V input voltage range, with a maximum operating temperature of 125°C. Packaged in a 28-pin QFN, this lead-free component is RoHS compliant.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LT3504IUFD#PBF technical specifications.
General
| Package/Case | QFN |
| Current - Output 1 | 1A |
| Current - Output 2 | 1A |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 3.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 4 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Voltage - Output 1 | 40V |
| Voltage - Output 2 | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3504IUFD#PBF Datasheet
Download the complete datasheet for Analog Devices LT3504IUFD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

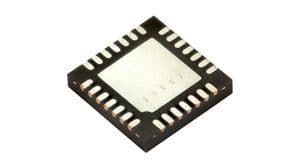

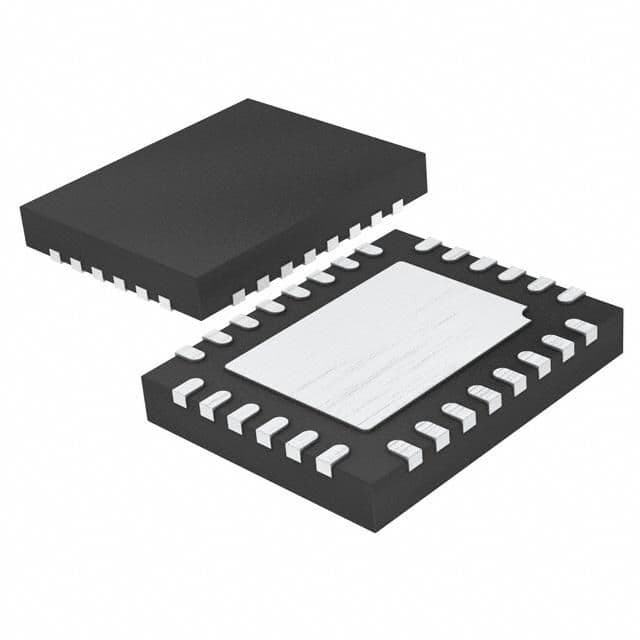

Product Images
