Analog Devices
LT3507AEFE#TRPBF
Triple DC/DC Controller, 36V In, 2.7A/1.8A/1.8A Out, 4 Outputs, TSSOP EP
Triple voltage regulator IC featuring four outputs, with current capabilities of 2.7A for one output and 1.8A for two others. Operates from a 4V to 36V input voltage range. Housed in a 38-pin TSSOP EP package, this RoHS compliant component is supplied on tape and reel for high-volume applications. Designed for operation across a wide temperature range from -40°C to 125°C.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LT3507AEFE#TRPBF technical specifications.
General
| Package/Case | SOP |
| Current - Output 1 | 2.7A |
| Current - Output 2 | 1.8A |
| Current - Output 3 | 1.8A |
| Max Input Voltage | 36V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 4 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3507AEFE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3507AEFE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

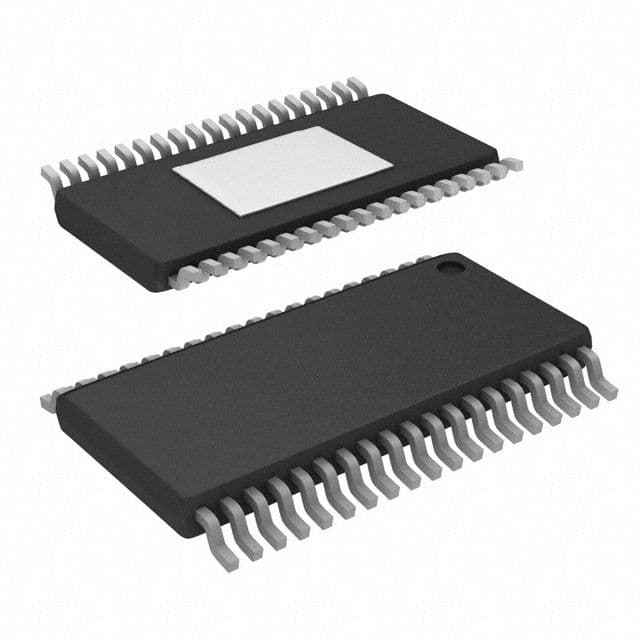

Product Images
