Analog Devices
LT3517HUF#PBF
LINEAR TECHNOLOGY LT3517HUF#PBF Led Driver, 1 Output, Boost, Buck, Buck-Boost, 3V-30V in, 2.5MHz switch, 40V/1.5A out, QFN-16
Frequency2.5MHz
PackageQFN
Current10mA
Quick Jump:
Technical Specifications
Analog Devices LT3517HUF#PBF technical specifications.
General
| Package/Case | QFN |
| Frequency | 2.5MHz |
| Max Input Voltage | 30V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Number of Outputs | 1 |
| Number of Segments | 3 |
| Output Current | 1.5A |
| Output Voltage | 40V |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | True Color PWM™ |
| Supply Current | 10mA |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3517HUF#PBF Datasheet
Download the complete datasheet for Analog Devices LT3517HUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

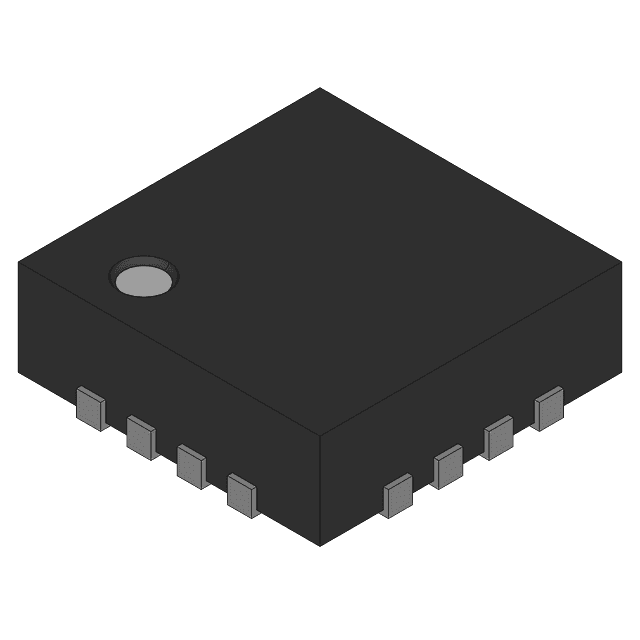

Product Images
