Boost LED driver IC featuring a 1.15MHz switching frequency and a 45V maximum output voltage, capable of driving up to 10 LEDs. Operates with input voltages ranging from 2.7V to 5.5V, and delivers a 20mA output current per segment. Packaged in a 6-pin TSOT for efficient integration. This RoHS compliant component is suitable for applications requiring high-efficiency LED illumination.
Frequency1.15MHz
PackageTSOT
Current10uA
Quick Jump:
Technical Specifications
Analog Devices LT3593ES6#TRMPBF technical specifications.
General
| Package/Case | TSOT |
| Frequency | 1.15MHz |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 1 |
| Number of Segments | 10 |
| Output Current | 20mA |
| Output Voltage | 45V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 10uA |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3593ES6#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3593ES6#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

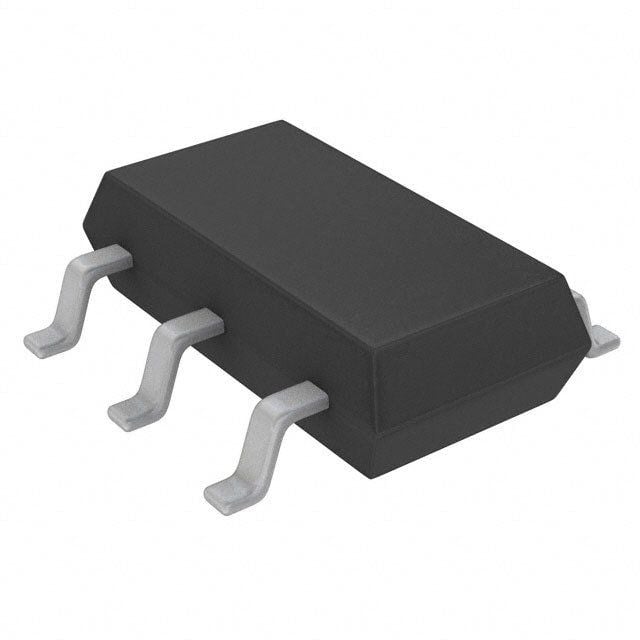

Product Images
