Analog Devices
LT3598IUF#PBF
LINEAR TECHNOLOGY LT3598IUF#PBF Led Driver, 6 Outputs, Boost (Step Up), 3.2V-30V in, 2.5MHz switch, 44V/30mA out, QFN-24
Frequency2.5MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LT3598IUF#PBF technical specifications.
General
Package/Case
QFN EP
Frequency
2.5MHz
Lead Free
Lead Free
Low Level Output Current
2mA
Max Input Voltage
30V
Min Input Voltage
3.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
3.2V
Number of Outputs
6
Number of Segments
60
Output Current
30mA
Output Voltage
44V
Package Quantity
91
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
True Color PWM™
Topology
Boost, SEPIC
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3598IUF#PBF Datasheet
Download the complete datasheet for Analog Devices LT3598IUF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

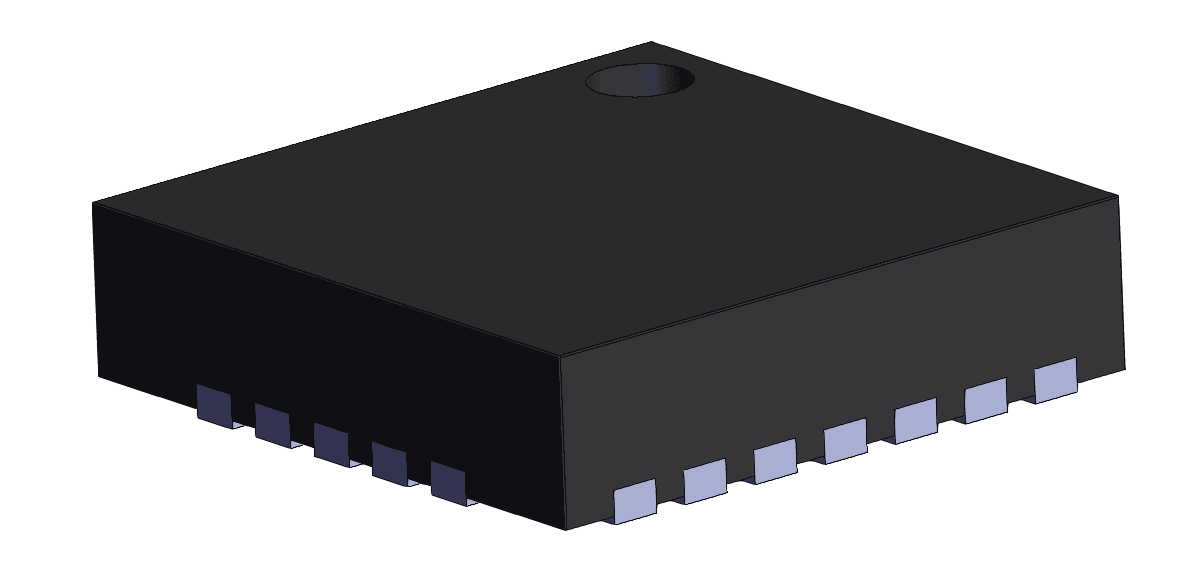

Product Images
