The LT3641HFE#TRPBF is a dual adjustable DC/DC controller from Analog Devices, packaged in a SOP package. It operates over a temperature range of -40°C to 150°C and is RoHS compliant. This device features two synchronous rectifier outputs and is available in quantities of 2000 per reel. The LT3641HFE#TRPBF is designed for use in DC/DC controller applications.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LT3641HFE#TRPBF technical specifications.
General
| Package/Case | SOP |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 2 |
| Output Current | 1.1A |
| Output Type | Adjustable |
| Output Voltage | 600mV |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Both |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3641HFE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3641HFE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

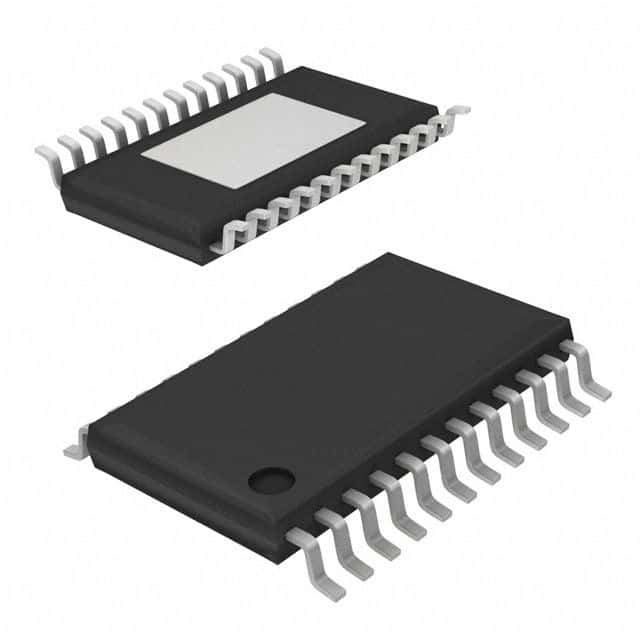

Product Images
