2-cell Lithium-Ion battery charger IC with 8.4V output voltage and 2A maximum charge current. Features a wide input voltage range from 9V to 32V and a maximum supply voltage of 32V. Operates across a temperature range of -40°C to 85°C. Packaged in a DFN form factor, supplied on tape and reel in quantities of 2500, and is RoHS compliant.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3650EDD-8.4#TRPBF technical specifications.
General
| Package/Case | DFN |
| Max Charge Current | 2A |
| Max Input Voltage | 32V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 9V |
| Number of Cells | 2 |
| Output Voltage | 8.4V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3650EDD-8.4#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3650EDD-8.4#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

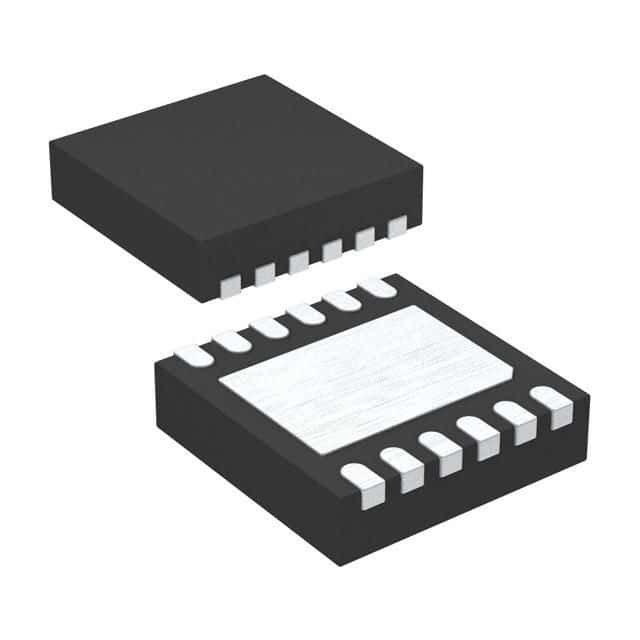

Product Images
