Surface mount battery charging IC with a 4.95V to 32V input voltage range. Features a maximum charge current of 2A and a maximum output voltage of 4.2V. Operates within a temperature range of -40°C to 125°C. Housed in a compact 3mm x 3mm x 0.7mm DFN package. RoHS compliant.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LT3652EDD#PBF technical specifications.
General
| Package/Case | DFN |
| Height | 0.7mm |
| Length | 3mm |
| Max Charge Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 4.2V |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 4.95V |
| Mount | Surface Mount |
| Nominal Input Voltage | 32V |
| Output Current | 2mA |
| Output Voltage | 4.2V |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3652EDD#PBF Datasheet
Download the complete datasheet for Analog Devices LT3652EDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

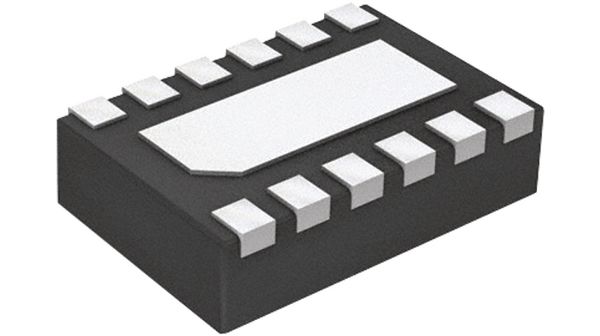

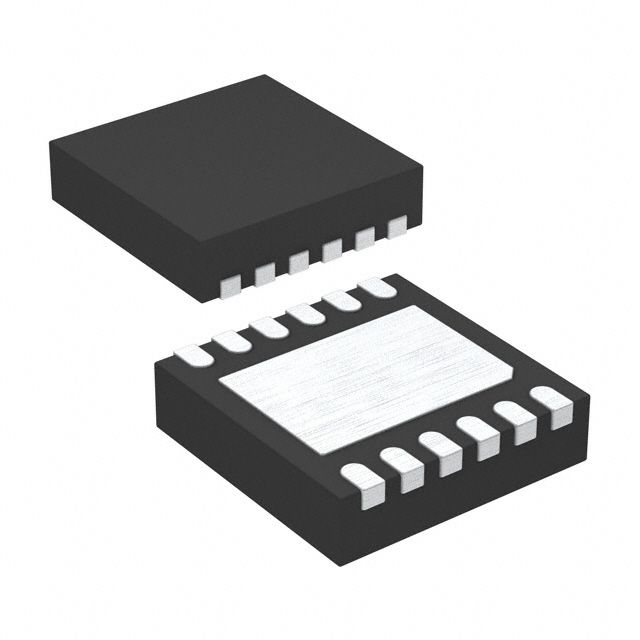

Product Images
