Adjustable DC/DC buck controller IC, featuring a 2A maximum output current and a 20V maximum output voltage. Operates with an input voltage range from 3.6V to 36V. This power management IC is housed in a compact 10-MSOP package with dimensions of 3mm x 3mm x 0.86mm. It supports a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LT3685EMSE#PBF technical specifications.
General
| Package/Case | MSOP |
| Height | 0.86mm |
| Length | 3mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 20V |
| Min Output Voltage | 790mV |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 20V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3685EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LT3685EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

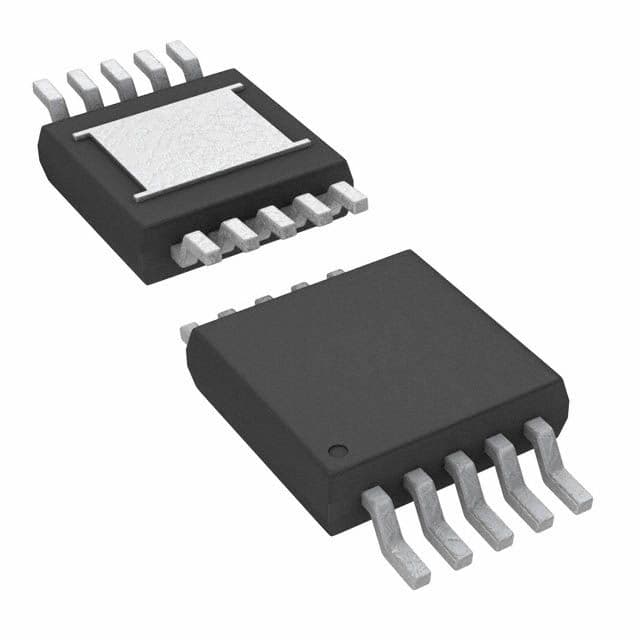

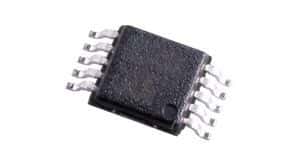

Product Images
